Configuring a Server with the Oracle Validated RPM

The fastest way to configure an Oracle Enterprise Linux server for an Oracle database installation is to run the Oracle Validated RPM.

Configuring YUM

A YUM server provides a repository for RPM packages and their associated metadata. This makes installing the packages and their dependencies straightforward. Oracle provides a public YUM server at http://public-yum.oracle.com, but its server provides only the packages you have already downloaded on the installation media. Subscribers to the Unbreakable Linux Network can access additional security updates and patches on top of the content available on the public YUM server. If you do not have access to the Unbreakable Linux Network or you do not wish to use the public YUM server, it is a simple enough process to configure your own from the installation media.

To Configure YUM using Proxy server


[root@coltdb01 ~]# cd /etc/yum.repos.d/
[root@coltdb01 yum.repos.d]# http_proxy=http://10.XX.XX.10:80
[root@coltdb01 yum.repos.d]# export http_proxy

For RHEL 5


[root@coltdb01 yum.repos.d]# wget http://public-yum.oracle.com/public-yum-el5.repo
--2012-10-25 16:25:53--  http://public-yum.oracle.com/public-yum-el5.repo
Connecting to 10.91.118.10:80... connected.
Proxy request sent, awaiting response... 200 OK
Length: 3974 (3.9K) [text/plain]
Saving to: `public-yum-el5.repo'

100%[===========================================================================================================================================================>] 3,974       --.-K/s   in 0.004s

2012-10-25 16:25:53 (1.04 MB/s) - `public-yum-el5.repo' saved [3974/3974]


[root@coltdb01 yum.repos.d]# yum install oracle-validated

For RHEL 6


[root@linux yum.repos.d]# wget http://public-yum.oracle.com/public-yum-ol6.repo
[root@linux yum.repos.d]# yum install oracle-rdbms-server-11gR2-preinstall

Once the Oracle Validated RPM installation completes, all the RPM packages and system configuration steps required for an Oracle Database 11g Release 2 RAC installation have also been completed. For example, the required user and groups have been created, and the necessary kernel parameters have been set.You can find the installed packages listed in /var/log/yum.log

Setup of the new Redundant Interconnect feature in Oracle 11gR2 (HAIP)

With the introduction of Oracle 11gR2, the need for IP failover using tools such as bonding are no longer required for the private interconnect. The grid infrastructure within 11.2.0.2 supports IP failover natively using a new feature introduced known as 'redundant interconnect'. Oracle uses its ora.cluster_interconnect.haip resource in order for communication with Oracle RAC, Oracle ASM, and other related services.  The HAIP (Highly Available Internet Protocol) has the ability to activate a maximum of four private interconnect connections. These private network adapters can be configured during the initial install process of Oracle Grid or after the installation process using the oifcfg utility.

Oracle Grid currently creates an alias IP (as known as virtual private IP) on your private network adapters using the 169.254.*.* subnet for the HAIP. However, if that subnet range is already in use, Oracle Grid will not attempt to use it. The purpose of HAIP is to load balance across all active interconnect interfaces, and failover to other available interfaces if one of the existing private adapters becomes unresponsive.

It is important to note, that when adding additional HAIP addresses (maximum of four) after the installation of Oracle Grid  a restart of your Oracle Grid will be required to make these new HAIP addresses active


The example below shows a step-by-step on how to enable redundant interconnect using HAIP on a existing Oracle 11gR2 Grid Infrastructure installation.

Pre-Installation

I have added a new private physical interface on both the nodes (eth4). Oracle currently does not support having different network interfaces for each node in the cluster. The best practice is to configure all nodes with the same network interface for each public subnet and the same network interface for each private subnet.

Edit the /etc/sysconfig/network-scripts/ifcfg-eth4 on both the nodes.

[root@coltdb01 bin]# ./oifcfg getif

eth0  192.168.1.0  global  cluster_interconnect

eth1  10.91.119.0  global  public

[oracle@coltdb01 bin]$ ./oifcfg iflist

eth0  192.168.1.0

eth0  169.254.0.0

eth4  192.168.1.0

eth1  10.91.119.0

You can check the interconnect details in the database

SQL> select * from gv$cluster_interconnects;

   INST_ID NAME            IP_ADDRESS       IS_ SOURCE

---------- --------------- ---------------- --- -------------------------------

         1 eth0:1          169.254.226.34   NO

         3 eth0:1          169.254.151.242  NO

SQL>  select * from v$cluster_interconnects;

NAME            IP_ADDRESS       IS_ SOURCE

--------------- ---------------- --- -------------------------------

eth0:1          169.254.226.34   NO

Using "oifcfg setif" set an interface type (cluster interconnect) for an interface.

oifcfg setif -global eth4/192.168.1.0:cluster_interconnect

Once Done, You must restart Oracle Clusterware on all members of the cluster when you make global changes.

Post-Installation

[root@coltdb01 bin]# ./oifcfg getif

eth0  192.168.1.0  global  cluster_interconnect

eth1  10.91.119.0  global  public

eth4  192.168.1.0  global  cluster_interconnect

[root@coltdb01 bin]# ./oifcfg iflist -p -n

eth0  192.168.1.0  PRIVATE  255.255.255.0

eth0  169.254.0.0  UNKNOWN  255.255.128.0

eth4  192.168.1.0  PRIVATE  255.255.255.0

eth4  169.254.128.0  UNKNOWN  255.255.128.0

eth1  10.91.119.0  PRIVATE  255.255.255.0

SQL> select * from gv$cluster_interconnects;

   INST_ID NAME            IP_ADDRESS       IS_ SOURCE

---------- --------------- ---------------- --- -------------------------------

         3 eth0:1          169.254.79.75    NO

         3 eth4:1          169.254.210.156  NO

         1 eth0:1          169.254.29.152   NO

         1 eth4:1          169.254.206.96   NO

SQL> select * from v$cluster_interconnects;

NAME            IP_ADDRESS       IS_ SOURCE

--------------- ---------------- --- -------------------------------

eth0:1          169.254.29.152   NO

eth4:1          169.254.206.96   NO

Grid Infrastructure Installation - Implementing an Advanced Installation for Automatic Configuration based on Grid Naming Service (GNS)

Whether you’re using GNS or a manual IP configuration, the availability of DNS is required to support the cluster configuration. If using GNS, a DHCP server configuration is also required. In this post I will showing you how to configure both the DNS and DHCP on Windows Server

Configuring DNS


It is necessary to create a delegated subdomain (e.g., grid1.example.com), which is managed by the Grid Naming Service (GNS). In Windows you can create the subdomain as follows

1. Right click on the domain name (e.g., example.com) and select the "New Delegation.."

2. Provide the Subdomain name as grid1 ( e.g., grid1.example.com) and click Next

3. Note that GNS is a cluster resource that requires its own VIP. The VIP is allocated within DNS. At any one time, GNS will only be active on one node in the cluster. If this node is shutdown, then Oracle Clusterware will automatically relocate the GNS VIP to one of the remaining nodes in the cluster.

Here the host name is provided as - cluster1-gns.grid1.example.com and the VIP IP as 10.91.119.184

4. Once you click "OK" you will get a confirmation screen as below.

Configuring DHCP

For our installation, we have configured DHCP to assign a range of 10 addresses that DHCP can allocate (10.91.119.185 to 10.91.119.195).

Configuration on the Cluster Nodes

On each node in the cluster, the /etc/resolv.conf is configured as follows:

search example.com grid1.example.com
nameserver 10.91.119.134
options attempts:2
options timeout:1

and you /etc/hosts will have entries only for you Private IPs


root@coltdb01 grid]# cat /etc/hosts
# Do not remove the following line, or various programs
# that require network functionality will fail.
127.0.0.1               localhost.localdomain localhost
::1             localhost6.localdomain6 localhost6
192.168.1.1   coltdb01-priv.example.com coltdb01-priv
192.168.1.2   coltdb02-priv.example.com coltdb02-priv

Testing the Setup

The cluvfy utility has been enhanced to test GNS before you go through the installation process and finding out it all failed. Before you install, you invoke runcluvfy comp gns -precrsinst as in this example:

[oracle@coltdb01 grid]$ ./runcluvfy.sh comp gns -precrsinst -domain grid1.example.com -vip 10.91.119.185 -verbose -n coltdb01

WARNING:

Could not access or create trace file path "/tmp/bootstrap/cv/log". Trace information could not be collected

Verifying GNS integrity

Checking GNS integrity...

Checking if the GNS subdomain name is valid...

The GNS subdomain name "grid1.example.com" is a valid domain name

Checking if the GNS VIP is a valid address...

GNS VIP "10.91.119.185" resolves to a valid IP address

Checking the status of GNS VIP...

GNS integrity check passed

Verification of GNS integrity was successful.

Setting up the Grid Plug and Play Information Page

As the oracle user, start the OUI using runInstaller.sh command and choose the Advance Installation option
In the Grid Plug and Play Information Page provide the following information

1. Provide the cluster name,scan name, GNS subdomain name and the GNS VIP address.

2. Add the Cluster Public hostname and Vitual Hostname should be AUTO

 3. At the End of the installation, you will asked to execute root.sh on both the nodes as root user.

4. After the successful execution of root.sh on both the nodes, you can see SCAN IPs and VIPs are dynamically assigned to both the nodes.

Post Validation


[oracle@coltdb01 bin]$ ./cluvfy comp gns -postcrsinst -verbose

Verifying GNS integrity

Checking GNS integrity...
Checking if the GNS subdomain name is valid...
The GNS subdomain name "grid1.example.com" is a valid domain name
Checking if the GNS VIP belongs to same subnet as the public network...
Public network subnets "10.91.119.0" match with the GNS VIP "10.91.119.0"
Checking if the GNS VIP is a valid address...
GNS VIP "10.91.119.184" resolves to a valid IP address
Checking the status of GNS VIP...
Checking if FDQN names for domain "grid1.example.com" are reachable

GNS resolved IP addresses are reachable

GNS resolved IP addresses are reachable

GNS resolved IP addresses are reachable

GNS resolved IP addresses are reachable

GNS resolved IP addresses are reachable
Checking status of GNS resource...
  Node          Running?                  Enabled?
  ------------  ------------------------  ------------------------
  coltdb01      yes                       yes
  coltdb02      no                        yes

GNS resource configuration check passed
Checking status of GNS VIP resource...
  Node          Running?                  Enabled?
  ------------  ------------------------  ------------------------
  coltdb01      yes                       yes
  coltdb02      no                        yes

GNS VIP resource configuration check passed.

GNS integrity check passed

Verification of GNS integrity was successful.


[oracle@coltdb01 bin]$ ./srvctl config gns -l
Name               Type Value
cluster1-scan      A    10.91.119.186
cluster1-scan      A    10.91.119.187
cluster1-scan      A    10.91.119.188
cluster1-scan1-vip A    10.91.119.186
cluster1-scan2-vip A    10.91.119.187
cluster1-scan3-vip A    10.91.119.188
coltdb01-vip       A    10.91.119.185
coltdb02-vip       A    10.91.119.189

As you can see, the GNS daemon will allocate three IP addresses from the range of addresses offered by the DHCP server. The IP addresses are records in DNS that resolve to the SCAN name in a round robin fashion

Adding Nodes

Executing the following command on one of the existing nodes in $GRID_HOME/oui/bin was enough to add a node to a cluster with GNS enabled:

[oracle@london1 bin]$ ./addNode.sh  "CLUSTER_NEW_NODES={newNodePublicIP}"

"Oracle Grid Infrastructure is not configured properly. ASMCA needs Oracle Grid Infrastructure to configure ASM" error while creating ASM instance using ASMCA

While creating a ASM instance for standalone server using "asmca", we received the following error.

Intially the Oracle Grid Infrastructure was installed using following option "Install Oracle Grid Infrastructure software Only"

Solution

Execute the "root.sh" again as root user. "root.sh" can be found on grid home.

------------------------

[root@coltdb08 grid]# ./opt/11.2.0/grid/root.sh

Performing root user operation for Oracle 11g

The following environment variables are set as:

    ORACLE_OWNER= oracle

    ORACLE_HOME=  /opt/11.2.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:

The contents of "dbhome" have not changed. No need to overwrite.

The contents of "oraenv" have not changed. No need to overwrite.

The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by

Database Configuration Assistant when a database is created

Finished running generic part of root script.

Now product-specific root actions will be performed.

To configure Grid Infrastructure for a Stand-Alone Server run the following command as the root user:

/opt/11.2.0/grid/perl/bin/perl -I/opt/11.2.0/grid/perl/lib -I/opt/11.2.0/grid/crs/install /opt/11.2.0/grid/crs/install/roothas.pl

To configure Grid Infrastructure for a Cluster execute the following command:

/opt/11.2.0/grid/crs/config/config.sh

This command launches the Grid Infrastructure Configuration Wizard. The wizard also supports silent operation, and the parameters can be passed through the response file that is available in the installation media.

---------------------

You can see there is separate script for creating Grid Infrastructure for stand-alone server. Execute the script as root user

--------------------

[root@coltdb08 grid]# /opt/11.2.0/grid/perl/bin/perl -I/opt/11.2.0/grid/perl/lib -I/opt/11.2.0/grid/crs/install /opt/11.2.0/grid/crs/install/roothas.pl

Using configuration parameter file: /opt/11.2.0/grid/crs/install/crsconfig_params

Creating trace directory

User ignored Prerequisites during installation

LOCAL ADD MODE

Creating OCR keys for user 'oracle', privgrp 'oinstall'..

Operation successful.

LOCAL ONLY MODE

Successfully accumulated necessary OCR keys.

Creating OCR keys for user 'root', privgrp 'root'..

Operation successful.

CRS-4664: Node coltdb08 successfully pinned.

Adding Clusterware entries to inittab

coltdb08     2012/08/23 16:56:53     /opt/11.2.0/grid/cdata/coltdb08/backup_20120823_165653.olr

Successfully configured Oracle Grid Infrastructure for a Standalone Server

------------

Now try to create the ASM instance using "asmca", it will successfully create the ASM instance.

Error: ORA-12545 while trying to connect using SCAN from the Oracle Client in Oracle 11gR2

While trying to connect from Oracle Client using the SCAN IP we are receiving the Error.

Enter user-name: system/manager@coltdb01-scan.test.exp:1521/sendb.test.exp

ERROR:
ORA-12545: Connect failed because target host or object does not exist

Steps to troubleshoot

1. check whether you are able to "ping" and "nslookup" the SCAN name from Client host. nslookup should resolve the SCAN ips

2. Check whether you have set your REMOTE_LISTENER correctly. In 11gR2 it should point to your SCAN name

    remote_listener                      string      coltdb01-scan:1521

3. Check your LOCAL_LISTENER parameter. It is very important, that you point your VIP correctly

    local_listener         (DESCRIPTION=(ADDRESS_LIST=(AD
                           DRESS=(PROTOCOL=TCP)(HOST=colt
                           db02-vip.test.exp)(PORT=1521))
                           ))


     Try to connect using the VIP name and  VIP IP address from the client instead of SCAN. If you are not able to connect using the VIP name and able to connect using the VIP IP address,
     make sure to change the local_listener value as below

    local_listener           (DESCRIPTION=(ADDRESS_LIST=(AD
                           DRESS=(PROTOCOL=TCP)(HOST=10.9
                           1.119.151)(PORT=1521))))

4. Make sure all your listener are online using following commands

   [oracle@coltdb01 admin]$ $GRID_HOME/bin/srvctl config scan
   [oracle@coltdb01 admin]$ $GRID_HOME/bin/srvctl config scan_listener
   [oracle@coltdb01 admin]$ $GRID_HOME/bin/crsctl stat res -w "TYPE = ora.scan_listener.type"
   [oracle@coltdb01 admin]$$GRID_HOME/bin/lsnrctl status LISTENER_SCAN1  ( Make sure you set the ORACLE_HOME env variable to GRID_HOME)
   [oracle@coltdb01 admin]$$GRID_HOME/bin/lsnrctl service LISTENER_SCAN1


My issue was fixed when I modified my local_listener to include the VIP IP address because the Oracle client was not able resolve the VIP name



Enter user-name: system/manager@coltdb01-scan.test.exp:1521/sendb.test.exp

Connected to:
Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production
With the Partitioning, Real Application Clusters, Automatic Storage Management,
OLAP,
Data Mining and Real Application Testing options



The reason is that the SCAN listener is only a front to the local listeners on each node. Once the SCAN interface determines what node to send you to it will basically change the connect string to the connect string of the local listener. The value of the local listener host for some reasons get from "local_listener" database initialisation parameter. By default you can have VIP adresses without domain name. If your DNS does not resolve nodes shortnames (which is quite common) SCAN does not know where is the node hosts and raise "ORA-12545: Connect failed because target host or object does not exist".

Moving OCR and Voting Disk from Raw Devices to ASM Disk

After upgrade from 10.2 to 11.3, you can use the following steps to move the ocr and Voting disk from Raw devices to ASM Disk.

1) Check the current OCR and Voting disk file

     OCR file status


     [oracle@coltdb01 ~]$ ocrcheck
     Status of Oracle Cluster Registry is as follows :
         Version                  :          3
         Total space (kbytes)     :     240480
         Used space (kbytes)      :       6520
         Available space (kbytes) :     233960
         ID                       : 1362593683
         Device/File Name         : /dev/raw/raw1
                                    Device/File integrity check succeeded
         Device/File Name         : /dev/raw/raw2
                                    Device/File integrity check succeeded

                                    Device/File not configured

                                    Device/File not configured

                                    Device/File not configured

         Cluster registry integrity check succeeded

         Logical corruption check bypassed due to non-privileged user

      Voting Disk status


       [oracle@coltdb01 ~]$ crsctl query css votedisk
       ##  STATE    File Universal Id                File Name Disk group
        --  -----    -----------------                --------- ---------
        1. ONLINE   2a87ecd7fedadfe9ff06de264773036e (/dev/raw/raw3) []
        2. ONLINE   2ca3947acf51ffa2bf271bf037bc8779 (/dev/raw/raw4) []
        3. ONLINE   1a72a3dca25eefabff869f8f5a661af3 (/dev/raw/raw5) []

2) Create a new ASM diskgroup for OCR and Voting disk.(you can use the existing disk also)

    SQL> create diskgroup CRS external redundancy DISK 'ORCL:VOL5';

    * Once you have created the Partition on node 1, execute the "partprobe" command on both the nodes

   * Execute "Oracleasm scandisks"  to check for the new ASM disk created. Verify using  "oracleasm listdisks" on node 2

   * Check on the node 2 whether the diskgroup created is mounted, otherwise mount it using
        SQL> alter diskgroup CRS MOUNT;

3) Change the compatible version of the asm diskgroup to 11.2

   SQL> select name,COMPATIBILITY,DATABASE_COMPATIBILITY from v$asm_diskgroup;

          NAME       COMPATIBILITY        DATABASE_COMPATIBILI
          ---------- -------------------- --------------------
          DATA         10.1.0.0.0           10.1.0.0.0
          FRA          10.1.0.0.0           10.1.0.0.0
          CRS          10.1.0.0.0           10.1.0.0.0

     SQL> alter diskgroup DATA set attribute 'compatible.asm'='11.2';

           Diskgroup altered.

     SQL> alter diskgroup FRA set attribute 'compatible.asm'='11.2';

          Diskgroup altered.

      SQL> alter diskgroup CRS set attribute 'compatible.asm'='11.2';

          Diskgroup altered.

       SQL> alter diskgroup DATA set attribute 'compatible.rdbms'='11.2';

          Diskgroup altered.

        SQL> alter diskgroup FRA set attribute 'compatible.rdbms'='11.2';

        Diskgroup altered.

        SQL> alter diskgroup CRS set attribute 'compatible.rdbms'='11.2';

        Diskgroup altered.

       SQL> select name,COMPATIBILITY,DATABASE_COMPATIBILITY from v$asm_diskgroup;

           NAME       COMPATIBILITY        DATABASE_COMPATIBILI
            ---------- -------------------- --------------------
           DATA         11.2.0.0.0           11.2.0.0.0
           FRA          11.2.0.0.0           11.2.0.0.0
           CRS          11.2.0.0.0           11.2.0.0.0

4) Replace the existing ocr file with the ASM disk


       [root@coltdb01 bin]# ./ocrconfig -replace /dev/raw/raw1 -replacement +CRS
   [root@coltdb01 bin]# ./ocrconfig -replace /dev/raw/raw2 -replacement +DATA

       Check the ocr status using ocrcheck

        [oracle@coltdb01 grid]$ ocrcheck
        Status of Oracle Cluster Registry is as follows :
         Version                  :          3
         Total space (kbytes)     :     240480
         Used space (kbytes)      :       6516
         Available space (kbytes) :     233964
         ID                       : 1362593683
         Device/File Name         :       +CRS
                                    Device/File integrity check succeeded
         Device/File Name         :      +DATA
                                    Device/File integrity check succeeded

                                    Device/File not configured

                                    Device/File not configured

                                    Device/File not configured

         Cluster registry integrity check succeeded

         Logical corruption check bypassed due to non-privileged user

5) Replace the voting disk as below

    [oracle@coltdb01 grid]$ crsctl replace votedisk +CRS
     CRS-4256: Updating the profile
     Successful addition of voting disk 8a10ad3375914f43bfc301334a9f6c2c.
     Successful deletion of voting disk 2a87ecd7fedadfe9ff06de264773036e.
     Successful deletion of voting disk 2ca3947acf51ffa2bf271bf037bc8779.
     Successful deletion of voting disk 1a72a3dca25eefabff869f8f5a661af3.
     Successfully replaced voting disk group with +CRS.
    CRS-4256: Updating the profile
    CRS-4266: Voting file(s) successfully replaced

     Check the Voting disk file
     [oracle@coltdb01 grid]$ crsctl query css votedisk
     ##  STATE    File Universal Id                File Name Disk group
     --  -----    -----------------                --------- ---------
      1. ONLINE   8a10ad3375914f43bfc301334a9f6c2c (ORCL:VOL5) [CRS]

6)  You can also use the following command to check ocr status

      cluvfy comp ocr -n all -verbose

Connected to an idle instance..DB is up and running

[oracle@coltdb01 bin]$ ps -ef | grep pmon
oracle    6098     1  0 Jul18 ?        00:00:08 asm_pmon_+ASM1
oracle    8280     1  0 Jul23 ?        00:00:01 ora_pmon_sendb1
oracle   28280 27300  0 18:12 pts/1    00:00:00 grep pmon

[oracle@coltdb01 ~]$ export ORACLE_HOME=/u03/oracle/product/11.2.0/db_1/

[oracle@coltdb01 ~]$ export ORACLE_SID=sendb1

[oracle@coltdb01 bin]$ pwd

/u03/oracle/product/11.2.0/db_1/bin

[oracle@coltdb01 bin]$ ./sqlplus

SQL*Plus: Release 11.2.0.3.0 Production on Tue Jul 24 18:13:48 2012

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

Enter user-name: / as sysdba

Connected to an idle instance.

I was wondering why I was not able to connect to the instance, which is up and running. After some time I could figure out that, the issue was with the backslash(/) in Oracle Home environment variable. After I removed the backslash(/) I am able to connect to the instance

[oracle@coltdb01 bin]$ export ORACLE_HOME=/u03/oracle/product/11.2.0/db_1

[oracle@coltdb01 bin]$ export ORACLE_SID=sendb1

[oracle@coltdb01 bin]$ pwd

/u03/oracle/product/11.2.0/db_1/bin

[oracle@coltdb01 bin]$ ./sqlplus

SQL*Plus: Release 11.2.0.3.0 Production on Tue Jul 24 18:17:09 2012

Copyright (c) 1982, 2011, Oracle.  All rights reserved.

Enter user-name: / as sysdba

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, Real Application Clusters, Automatic Storage Management, OLAP,

Data Mining and Real Application Testing options

SQL>

11gR2 RDBMS software Installation and Database Upgrade from 10.2 to 11.3 using DBUA

Please find the high level steps to upgrade your 10.2 RAC database to 11.3 using DBUA. I would recommend using DBUA for RAC databases upgrade, as dbua is RAC aware and performs various RAC related tasks internally.

1) Before we start the upgrade, use cluvfy to verify whether the nodes are ready for upgrade.

    From the 11gR2 software binaries location execute -->
    cluvfy stage -pre dbinst -n coltdb01,coltdb02 -d $ORACLE_HOME -verbose

2)  Once the cluvfy succeed for all the nodes, run the ./runInstaller to install the database software.

3) Choose "Install database software only" option.

4) As you can see, the nodes would be displayed and select all the nodes, where the software should be      installed.

5) Specify the Oracle Base and Oracle software location

6) Oracle will check for the Pre-requisite to install the software, make sure all the pre-requisite are met

7) Before the installation starts, the Summary is provided, .Click Install to start the installation.

 8) At the end of the installation, you will be asked to execute the root.sh on all the nodes.

Once you have successfully install the database software, now you can upgrade your 10.2 RAC database using DBUA.


 Things to do before you start your upgrade


1. Take a Full Database Backup


2. Take the count of invalid Objects after executing the utlrp.sql script.


3. Execute OH_11G/rdbms/admin/utlu112i.sql, to identify the Pre-upgrade task to be done on the database.

    SQL> @/u03/oracle/product/11.2.0/db_1/rdbms/admin/utlu112i.sql
    Oracle Database 11.2 Pre-Upgrade Information Tool 07-17-2012 15:36:09
    Script Version: 11.2.0.3.0 Build: 001
.
    **********************************************************************
    Database:
   **********************************************************************
   --> name:          SENDB
   --> version:       10.2.0.5.0
   --> compatible:    10.2.0.5.0
   --> blocksize:     8192
   --> platform:      Linux x86 64-bit
  --> timezone file: V4
.
  **********************************************************************
  Components: [The following database components will be upgraded or installed]
  **********************************************************************
  --> Oracle Catalog Views         [upgrade]  VALID
  --> Oracle Packages and Types    [upgrade]  VALID
  --> JServer JAVA Virtual Machine [upgrade]  VALID
  --> Oracle XDK for Java          [upgrade]  VALID
  --> Real Application Clusters    [upgrade]  VALID
  --> Oracle Workspace Manager     [upgrade]  VALID
  --> OLAP Analytic Workspace      [upgrade]  VALID
  --> OLAP Catalog                 [upgrade]  VALID
  --> EM Repository                [upgrade]  VALID
  --> Oracle Text                  [upgrade]  VALID
  --> Oracle XML Database          [upgrade]  VALID
  --> Oracle Java Packages         [upgrade]  VALID
  --> Oracle interMedia            [upgrade]  VALID
  --> Spatial                      [upgrade]  VALID
  --> Data Mining                  [upgrade]  VALID
  --> Expression Filter            [upgrade]  VALID
  --> Rule Manager                 [upgrade]  VALID
  --> Oracle OLAP API              [upgrade]  VALID


3. Fix  the component if they are not valid.


Steps to upgrade the Database using DBUA

1) Execute the dbua from 11g R2 Oracle Home.
    [oracle@coltdb01 bin]$ pwd
    /u03/oracle/product/11.2.0/db_1/bin
    [oracle@coltdb01 bin]$ ./dbua

2) DBUA will list the databases mentioned in the Oratab. Select the correct db which you require to upgrade

3) You will receive a pop-up asking for the confirmation. Click Yes, if you have done all the pre- requisite

4) Provide the degree of Parallelism to recompile the invalid objects and also turn off the archiving mode    while upgrade. The DBUA will automatically turn on the archive mode after the upgrade.

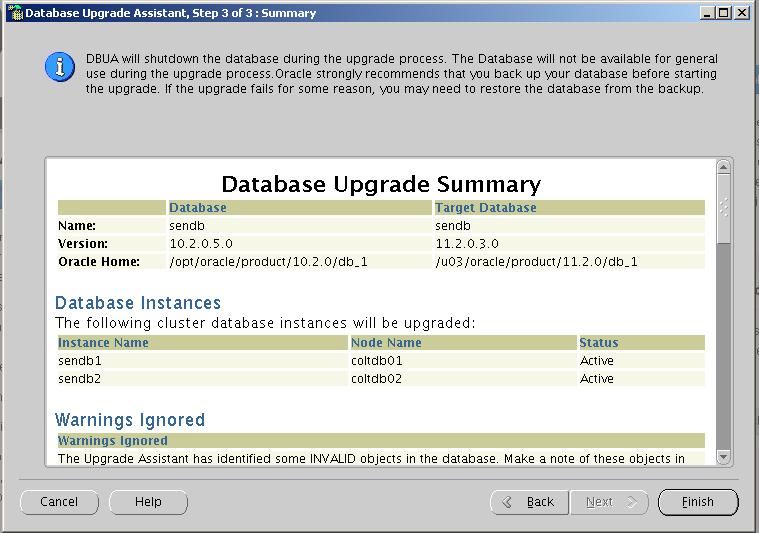

5) At the end, dbua provides a Database upgrade Summary Report. Click Finish to start the upgrade.

6)  The DBUA upgrades all the components

7) At the End it provides you the Upgrade Results Summary. You can review, if there are any errors.

Post upgrade Validation

1) Execute utlrp.sql to compile the invalid objects and check for the count. It should be same or less than the earlier count.

2) Execute the OH_11G/rdbms/admin/utlu112s.sql to check the upgrade status of all the components.
    Also you can check the Total Upgrade Time taken at the end of the report.


3) Gather the stats for system and fixed objects.


4) Execute the  following command to check the status of the database
  [oracle@coltdb01 bin]$ ./srvctl config database -d sendb
   Database unique name: sendb
   Database name:
   Oracle home: /u03/oracle/product/11.2.0/db_1
   Oracle user: oracle
   Spfile: +DATA/sendb/spfilesendb.ora
   Domain: cms.colt
   Start options: open
   Stop options: immediate
   Database role: PRIMARY
   Management policy: AUTOMATIC
   Server pools: sendb
   Database instances: sendb1,sendb2
   Disk Groups: DATA,FRA
   Mount point paths:
   Services:
   Type: RAC
   Database is administrator managed


5)  Take a full backup of the database


6) If you have tested your application thoroughly with oracle 11gR2, you can modify your compatible parameter. Because once you have modified your compatible parameter to 11.2, you cannot downgrade your database using normal method. only option is yo restore your database using the backup taken.


Time taken to upgrade the database does not mainly depend on your size of the database. It depends on the number of component you have installed along with the software.

Administrating the 10.2 RAC database in 11.2 Grid CRS

To use the 10.2 Database with 11.2 CRS the the node(s) should be pinned. In 11gR2 default is "unpinned"

Issue below command to check nodes are pinned or not
$GRID_HOME/bin/olsnodes -t -n

If nodes are "unpinned" then to pin nodes by executing the below command as root user
$GRID_HOME/bin/crsctl pin css -n <racnode1> <racnode2>

Also to manage the 10g databases you must use 10g srvctl, you cannot execute the srvctl from 11.2 Grid home

[oracle@coltdb01 db_1]$ /u02/app/11.2.0/grid/bin/srvctl status database -d sendb
PRCD-1027 : Failed to retrieve database sendb
PRCD-1027 : Failed to retrieve database sendb
PRKP-1088 : Failed to retrieve configuration of cluster database sendb
PRKR-1078 : Database sendb of version 10.2.0.0.0 cannot be administered using current version of srvctl. Instead run srvctl from /opt/oracle/product/10.2.0/db_1


Now try from 10.2 database home

[oracle@coltdb01 db_1]$ /opt/oracle/product/10.2.0/db_1/bin/srvctl status database -d sendb
Instance sendb1 is running on node coltdb01
Instance sendb2 is running on node coltdb02

Upgrading Oracle Clusterware and ASM from 10.2.0.5 to 11.2.0.3

I have provided the high level steps to upgrade Oracle Clusterware and ASM from 10.2.0.5 to 11.2.0.3.

Upgrading from oracle 10gR2 clusterware and ASM to 11gR2 is always out of place upgrade and can’t be done in rolling upgrade options because in 11gR2 we have single “Grid Infrastructure Home"  for both Clusterware and ASM.

Grid Infrastructure  --> Clusterware & ASM

Below are the Steps to upgrade to your Clusterware and ASM

1) Download the following software from Oracle support site

  p10404530_112030_Linux-x86-64_1of7.zip

        p10404530_112030_Linux-x86-64_2of7.zip

        p10404530_112030_Linux-x86-64_3of7.zip

2) After unzipping the grid software, run the cluvfy to verify whether the nodes are ready for the upgrade. If the check was unsuccessful, rectify and run it again.

./runcluvfy.sh stage -pre crsinst -n coltdb01,coltdb02 -fixup -fixupdir /opt/oracle –verbose

3) Check for the clusterware active and software version. It should be same

crsctl query crs activeversion

crsctl query crs softwareversion

4) Configure the SCAN IP in the DNS ( pls refer my previous post to configure SCAN IP on DNS server). You can also configure the SCAN IP in your ‘host’ file. But oracle does not recommend it.

5) Unset  ORACLE_BASE,ORACLE_HOME,ORACLE_CRS_HOME,TNS_ADMIN,ORA_NLS10



My current 10.2.0.3 home

ASM_HOME = /opt/oracle/product/10.2.0/asm

CRS_HOME= /u01/crs/oracle/product/10.2.0/crs

6) Backup VOTING DISK,OCR,CLUSTER HOME AND ORACLE HOME

OCR Backup

ocrconfig -export /u01/crs/oracle/product/10.2.0/crs/cdata/crs/ocr_backup.ocr -s online

Voting disk Backup

dd if=/dev/raw/raw3 of=/u01/crs/oracle/product/10.2.0/crs/cdata/crs/votedisk.dmp

Similarly backup the Cluster and Oracle Homes

7) Once the backup is taken, you can start the installation by executing the runInstaller.sh from

the grid software location.

Note – The existing 10g cluster & ASM is still up and running on both the nodes

8) Once the installation is started, you can see that oracle automatically selects the  upgrade option of the installation

9) You will be asked to select the node names and given a option to select whether you want to upgrade your ASM too

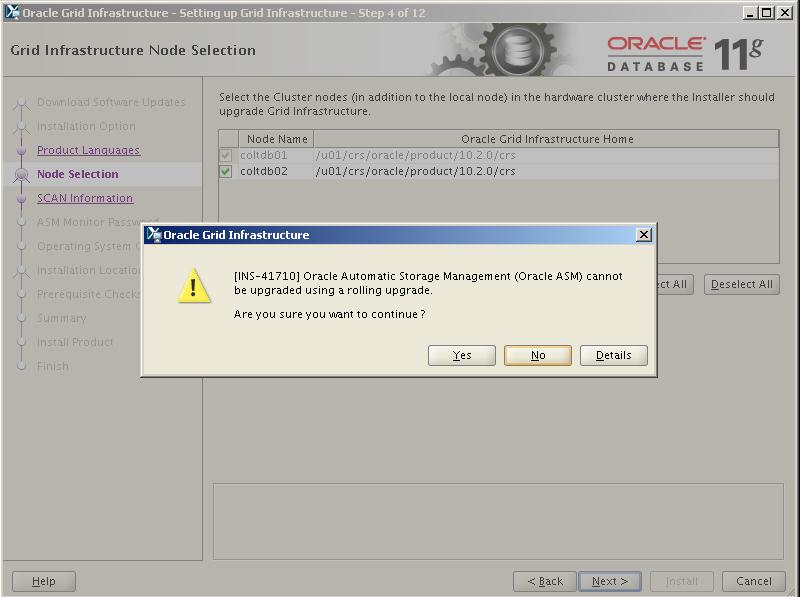

10) You will get a pop up window saying “ASM cannot be upgraded using rolling upgrade”, do you want to continue. Press “YES” to continue

11) You will be asked for the SCAN name and the port number. Provide the scan name which we created earlier in our DNS server.

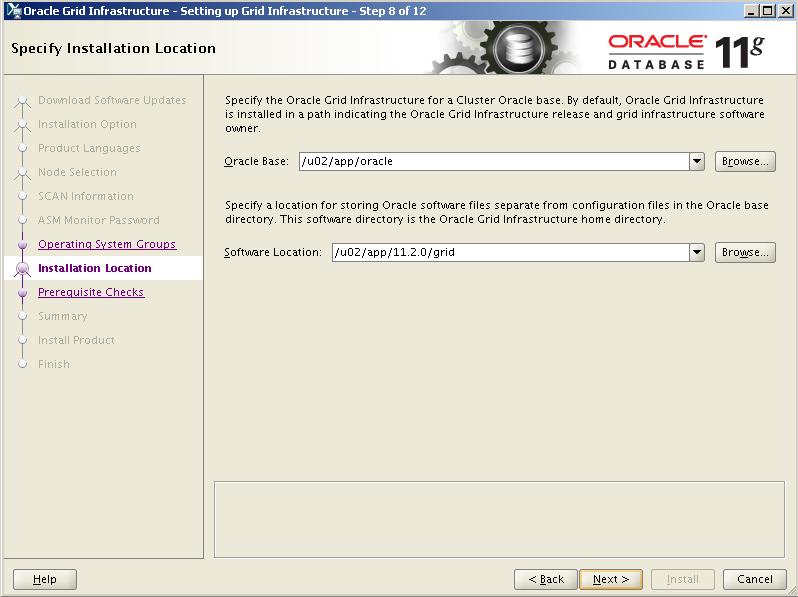

12) You have provide your new Gird Base home and software home, as you can see the Base home will be different from software home.

13) After this oracle will perform a pre-requisite check for you installation. You can see there will be a failure for “OCR integrity”. It seems to be a bug  and you can ignore it.
Check the following note - Checklist for PRVF-10037 : Failed to retrieve storage type for xx on node xx [ID 1233505.1]

14) You will get a summary window before the installation starts, please review it and clink on the install

15) At the end of the installation, you will be asked to execute rootupgrade.sh on all the nodes as root user. Rootupgrade.sh is an important script  which does the upgrade of the cluster

16) You can see the message stating “succeed” at the end of the script execution. If the scripts fails for various reason, you need to refer the Oracle support note to fix it (How to Proceed from Failed Upgrade to 11gR2 Grid Infrastructure on Linux/Unix [ID 969254.1])

17) After rootupgrade.sh is successfully executed, the installation proceeds with ASM upgrade. Make sure your ASM is upgraded without any issue.

18) Once the upgrade of clusterware and ASM is completed successfully, you can validate using following scripts

Post-upgrade verification

[oracle@coltdb01 bin]$ ./crsctl query crs activeversion

Oracle Clusterware active version on the cluster is [11.2.0.3.0]

[oracle@coltdb01 bin]$ ./crsctl query crs softwareversion

Oracle Clusterware version on node [coltdb01] is [11.2.0.3.0]

In Oracle 11g R2 you can verify the cluster status from a single node

[oracle@coltdb01 bin]$ ./crsctl check cluster -all

**************************************************************

coltdb01:

CRS-4537: Cluster Ready Services is online

CRS-4529: Cluster Synchronization Services is online

CRS-4533: Event Manager is online

**************************************************************

coltdb02:

CRS-4537: Cluster Ready Services is online

CRS-4529: Cluster Synchronization Services is online

CRS-4533: Event Manager is online

19) OCR and Voting disk checks. As you can see there are 5 OCR files in oracle 11gR2. Also  voting disk files are listed in 11gR2

[oracle@coltdb01 bin]$ ./ocrcheck

Status of Oracle Cluster Registry is as follows :

      Version                  :          3

        Total space (kbytes)     :     240480

        Used space (kbytes)      :       6320

        Available space (kbytes) :     234160

         ID                       : 1362593683

         Device/File Name         : /dev/raw/raw1

                                    Device/File integrity check succeeded

           Device/File Name         : /dev/raw/raw2

                                    Device/File integrity check succeeded

                                    Device/File not configured

                                    Device/File not configured

                                    Device/File not configured

         Cluster registry integrity check succeeded

         Logical corruption check bypassed due to non-privileged user

[oracle@coltdb01 bin]$ ./crsctl query css votedisk

##  STATE    File Universal Id                File Name Disk group

--  -----    -----------------                --------- ---------

1. ONLINE   2a87ecd7fedadfe9ff06de264773036e (/dev/raw/raw3) []

2. ONLINE   2ca3947acf51ffa2bf271bf037bc8779 (/dev/raw/raw4) []

3. ONLINE   1a72a3dca25eefabff869f8f5a661af3 (/dev/raw/raw5) []

20) Once the post upgrade checks are completed, you can detach the Old Oracle homes (cluster and ASM from the inventory)

Ex for Cluster Home-

/u01/crs/oracle/product/10.2.0/crs/oui/bin/runInstaller -detachHome -silent -local ORACLE_HOME=/u01/crs/oracle/product/10.2.0/crs
